Beautiful sankey plot

Usage

plot_sankey_single(
  data,
  pri,
  sec,
  color.group = c("pri", "sec"),
  colors = NULL,
  ...
)

Arguments

color.group: set group to colour by. "x" or "y".
colors: optinally specify colors. Give NA color, color for each level in primary group and color for each level in secondary group.
...: passed to sankey_ready()

Value

ggplot2 object

Examples

ds <- data.frame(g = sample(LETTERS[1:2], 100, TRUE), first = REDCapCAST::as_factor(sample(letters[1:4], 100, TRUE)), last = REDCapCAST::as_factor(sample(letters[1:4], 100, TRUE)))

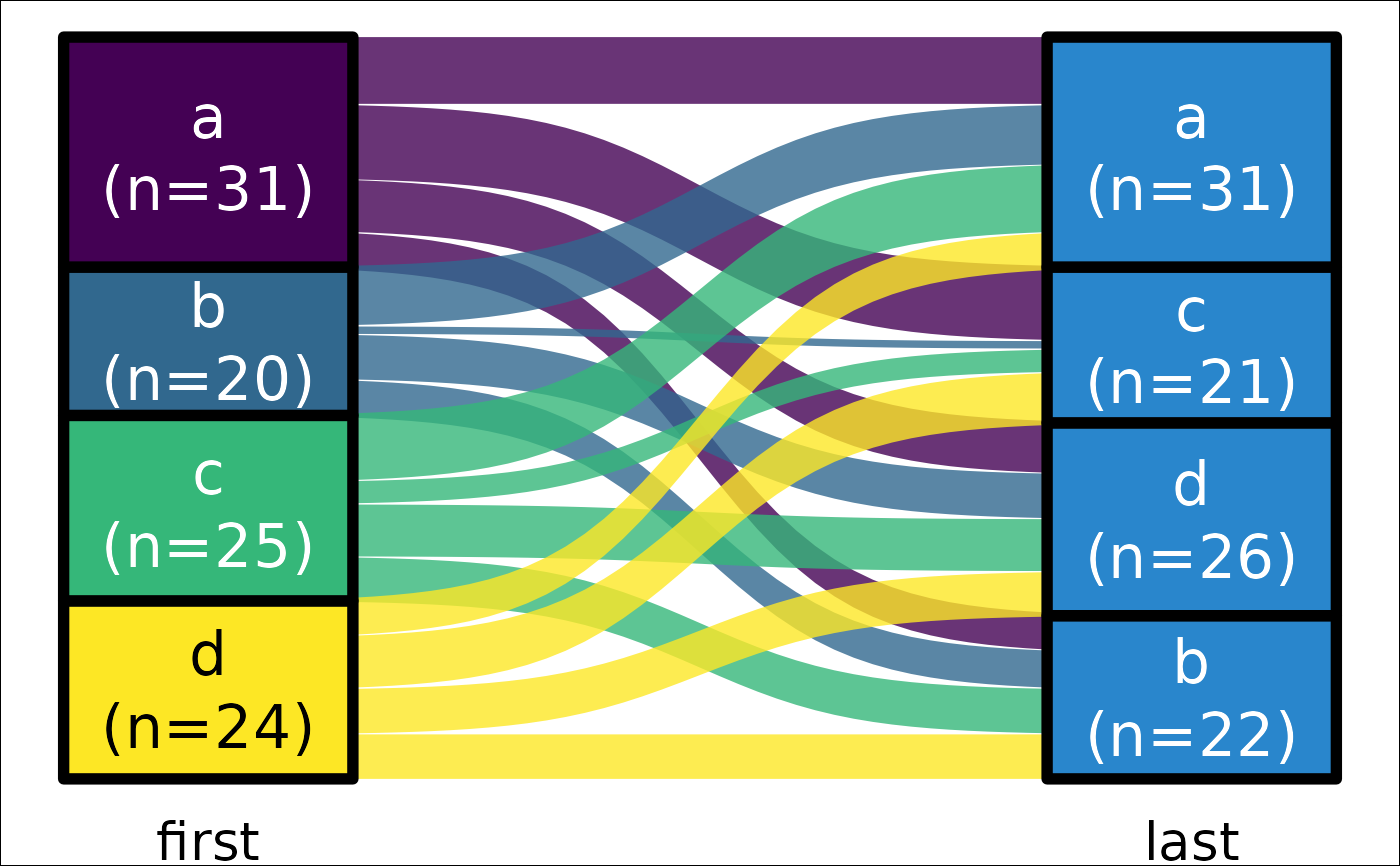

ds |> plot_sankey_single("first", "last")
#> Warning: Some strata appear at multiple axes.
#> Warning: Some strata appear at multiple axes.
#> Warning: Some strata appear at multiple axes.

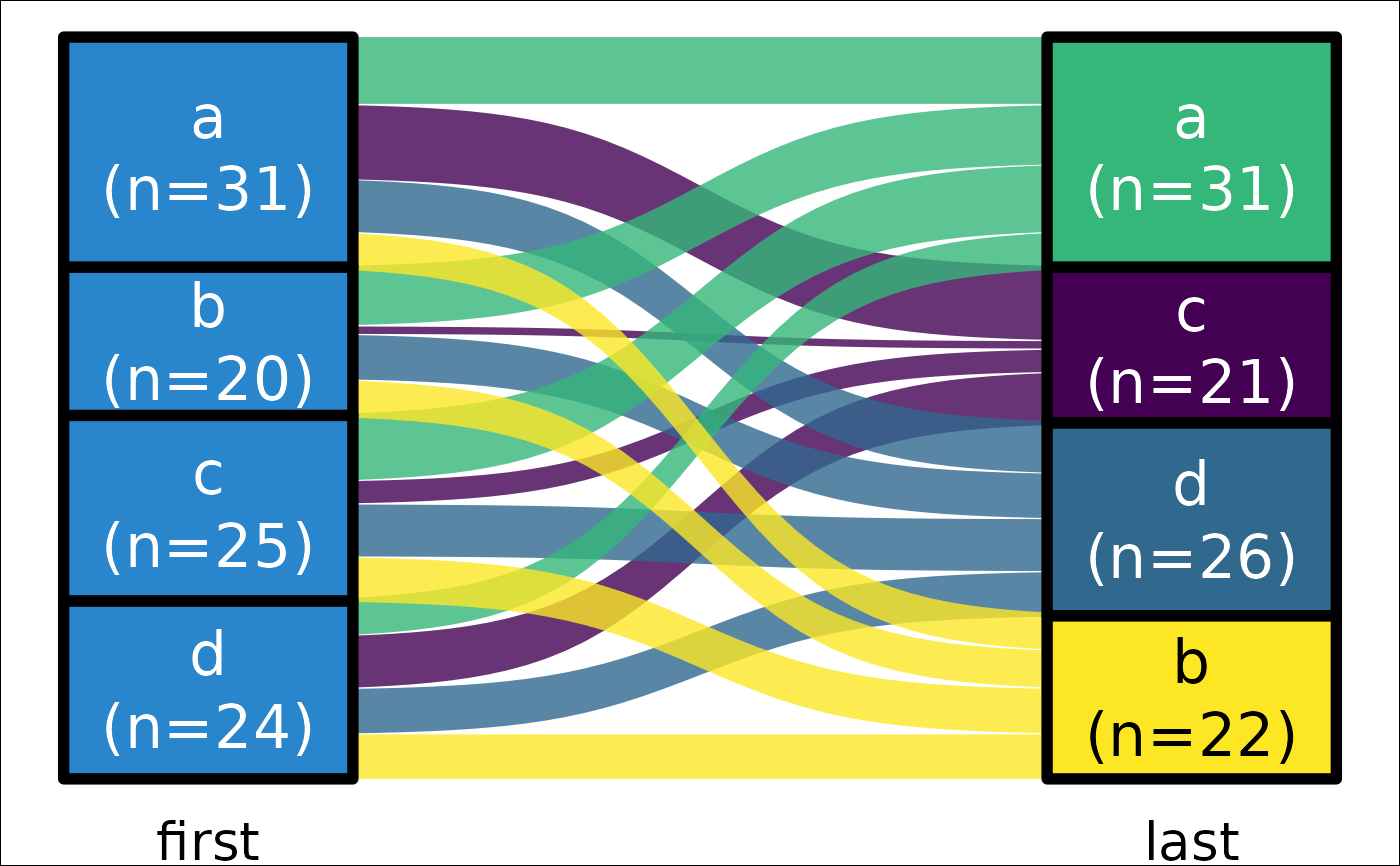

ds |> plot_sankey_single("first", "last", color.group = "sec")
#> Warning: Some strata appear at multiple axes.
#> Warning: Some strata appear at multiple axes.
#> Warning: Some strata appear at multiple axes.

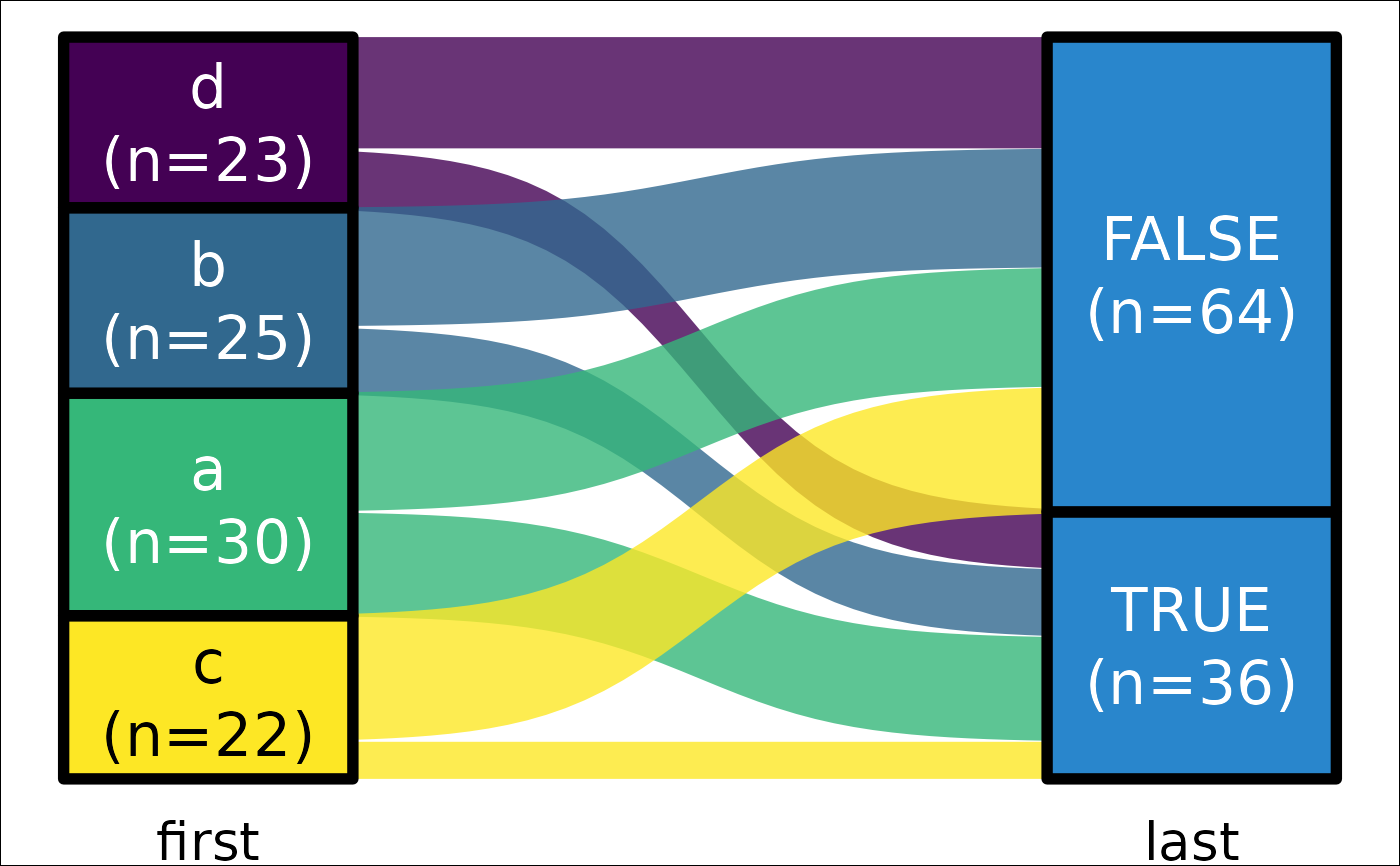

data.frame(
  g = sample(LETTERS[1:2], 100, TRUE),
  first = REDCapCAST::as_factor(sample(letters[1:4], 100, TRUE)),
  last = sample(c(TRUE, FALSE, FALSE), 100, TRUE)
) |>
  plot_sankey_single("first", "last", color.group = "pri")

mtcars |>
  default_parsing() |>
  str()
#> tibble [32 × 11] (S3: tbl_df/tbl/data.frame)
#>  $ mpg : num [1:32] 21 21 22.8 21.4 18.7 18.1 14.3 24.4 22.8 19.2 ...
#>  $ cyl : Factor w/ 3 levels "4","6","8": 2 2 1 2 3 2 3 1 1 2 ...
#>  $ disp: num [1:32] 160 160 108 258 360 ...
#>  $ hp  : num [1:32] 110 110 93 110 175 105 245 62 95 123 ...
#>  $ drat: num [1:32] 3.9 3.9 3.85 3.08 3.15 2.76 3.21 3.69 3.92 3.92 ...
#>  $ wt  : num [1:32] 2.62 2.88 2.32 3.21 3.44 ...
#>  $ qsec: num [1:32] 16.5 17 18.6 19.4 17 ...
#>  $ vs  : logi [1:32] FALSE FALSE TRUE TRUE FALSE TRUE ...
#>  $ am  : logi [1:32] TRUE TRUE TRUE FALSE FALSE FALSE ...
#>  $ gear: Factor w/ 3 levels "3","4","5": 2 2 2 1 1 1 1 2 2 2 ...
#>  $ carb: Factor w/ 6 levels "1","2","3","4",..: 4 4 1 1 2 1 4 2 2 4 ...
plot_sankey_single("cyl", "vs", color.group = "pri")
#> Error in plot_sankey_single("cyl", "vs", color.group = "pri"): argument "sec" is missing, with no default
